Highbanker Setup Guide: Step-by-Step Instructions for Success

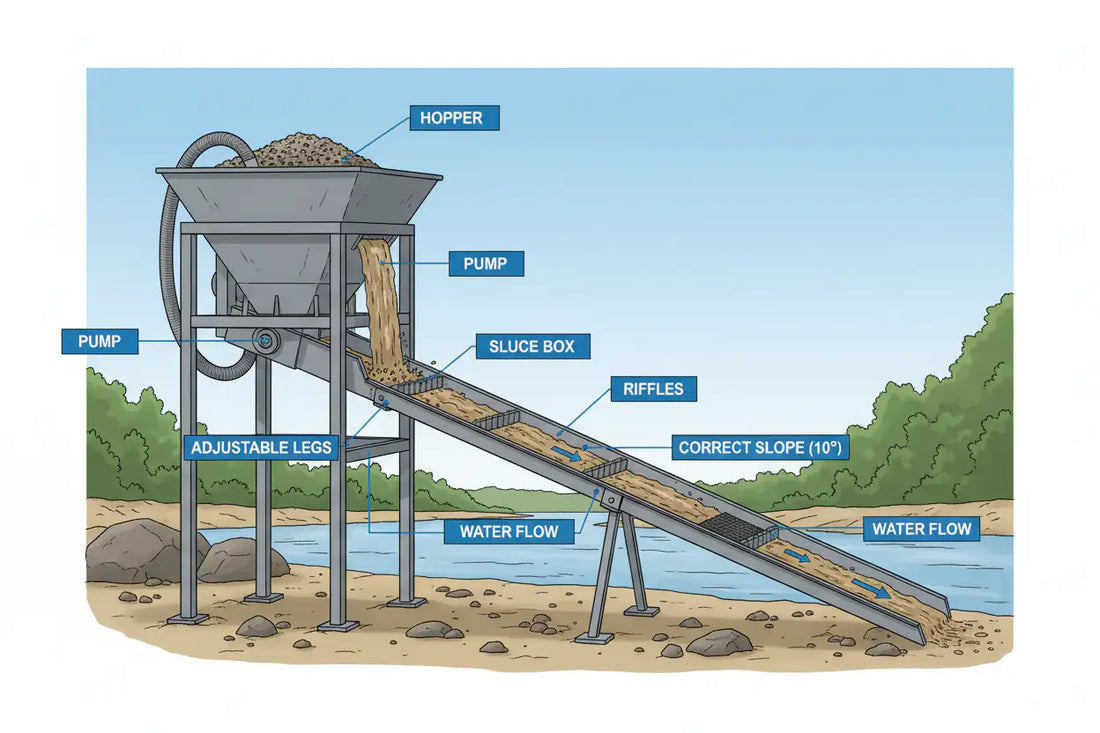

Introduction to Highbanker Setup

A highbanker combines an elevated feed hopper or wash section with a sluice-style recovery system. Depending on the site and equipment, water may come directly from a stream or pump, or it may be captured and recirculated through settling tubs.

Correct setup is not one fixed angle or pump setting. Recovery depends on the relationship between four controls:

• Sluice angle

• Water volume and velocity

• Material size and composition

• Feed rate

This guide gives you a reliable starting process. Always follow the instructions for your specific machine and test your tailings before increasing production.

Before heading out, read Reading a River and Reading the Ground to identify promising material before setting up.

Pre-Setup Checklist

• Highbanker, frame, hopper, grizzly, and recovery components

• Pump sized for the machine

• Intake and discharge hoses with secure fittings

• Appropriate power source

• Level, angle finder, or measuring tool

• Buckets or settling tubs if recirculating water

• Classifier appropriate for your expected feed

• Gold pan, snuffer bottle, and storage vials

• Shovel and cleanup tools

• Manufacturer’s setup instructions

• Any permits or authorizations required at the site

The 5 Piece Stacking Classifier Set provides several field-screening options, while the Golden Samurai Pan can be used for testing and final cleanup.

Step 1: Confirm the Location and Rules

Before assembling equipment, verify that powered processing is permitted at the exact location. Rules can differ by land manager, waterway, season, equipment, and discharge method.

Choose stable ground near the material you intend to process. Avoid unstable banks, sensitive habitat, active claims without permission, and any setup that could return sediment improperly to the waterway.

Step 2: Assemble the Machine

Follow the manufacturer’s instructions for your model.

At minimum:

1. Secure the hopper and sluice sections to the frame.

2. Install the grizzly, screens, riffles, and recovery mats in their intended positions.

3. Confirm that every mat lies flat and that material cannot travel underneath it.

4. Connect the pump, intake, discharge hose, valves, and fittings.

5. Remove hose kinks and secure every clamp.

6. If recirculating, arrange enough settling capacity to keep sediment away from the pump intake.

7. Level the sluice from side to side so water and material distribute evenly.

Read our Sluice Mat Selection Guide before combining recovery surfaces.

Step 3: Establish a Starting Angle

Use the manufacturer’s recommended angle first. If no model-specific setting is available, approximately 5–7 degrees is a common starting range for conventional sluice-style recovery—but it is only a starting point.

Do not choose an angle based on gold size alone.

• Increasing the angle generally increases material velocity and throughput.

• Decreasing the angle generally slows the material and may require a lower feed rate.

• Too steep or too much water can scour recovery zones.

• Too shallow or too little water can pack the mats and bury the riffles.

Level the machine from side to side, begin conservatively, and adjust only after observing how the material clears.

Step 4: Calibrate Water Flow

Start the pump with no material in the machine.

Increase flow gradually until:

• Water covers the usable width evenly.

• The hopper washes material without uncontrolled splashing.

• Classified material moves through the recovery section steadily.

• Lighter material clears without stripping the recovery zones.

• No side channel carries most of the water or material.

High water volume is not automatically better. The correct flow is the minimum stable flow that washes the feed properly and keeps the recovery system working as designed.

Step 5: Test Before Production

Run a small, measured sample first.

1. Feed material at a steady rate.

2. Allow each scoop to clear before adding more.

3. Watch for clay balls, packed riffles, buried mats, and material exiting too quickly.

4. Pan or rerun a sample of the tailings.

5. Adjust only one variable at a time: angle, water flow, classification, or feed rate.

If gold appears in the tailings, slow down and diagnose the cause before processing more material.

Step 6: Match Classification to the Ground

Classification improves consistency, but the correct screen size depends on the highbanker, grizzly spacing, available water, gold size, and feed material.

• Remove rocks larger than the machine is designed to process.

• Break up clay completely before it reaches the recovery section.

• Use finer classification when limited water cannot move larger material.

• Avoid unnecessary extra screening when the machine’s grizzly already produces a consistent feed.

A 1/2-inch or 1/4-inch screen can be useful in many small systems, but neither size is universal.

Operating the Highbanker

• Feed steadily instead of dumping full shovels at once.

• Keep the hopper supplied with enough water to wash every rock.

• Watch both sides of the sluice for even flow.

• Stop if mats begin packing or riffles become buried.

• Keep the pump intake clear of sediment and debris.

• If recirculating, allow sediment to settle before water returns to the pump.

• Check sampled tailings throughout the day—not only at the end.

Cleanup Process

Follow the machine’s instructions and protect every concentrate-bearing component.

1. Stop feeding and run clean water long enough to clear loose waste material.

2. Shut down the pump.

3. Remove riffles, mats, and recovery components carefully.

4. Rinse concentrates into a clean tub or bucket using gentle water flow.

5. Inspect corners, seams, and the area beneath removable components.

6. Pan the concentrates with the Golden Samurai.

7. Recheck the first cleanup until you understand how your system retains gold.

Choosing Recovery Mats

There is no universal “top mat” and “bottom mat” arrangement for every highbanker. Match each recovery surface to:

• The machine’s mat dimensions and retention method

• Expected gold size

• Water velocity

• Feed composition

• Manufacturer recommendations

Aggressive recovery surfaces may help control coarse material and higher-energy flow. Fine-gold surfaces generally need controlled water, complete clay breakup, and a feed rate that prevents packing.

Browse compatible sluice mats and verify dimensions before ordering.

Highbanker Options

The Fable Fire Two-Stage Mini-Highbanker uses two recovery stages, interchangeable grizzly options, and separate drop-in mat zones. Its pump and mats are sold separately.

The Pro Prospector Elite Bundle combines a Golden Mustang Mini-Highbanker with additional recovery equipment for a broader field workflow.

Both systems are currently being restocked. Visit the product page and use Notify me if you want availability updates.

For location planning, download our Prospecting by State Guide.

Final Rule: Test the Tailings

No published angle or pump setting can account for every machine and every type of ground.

Start conservatively. Feed consistently. Change one variable at a time. Most importantly, test your tailings. The material leaving the machine is the clearest evidence of whether your setup is recovering gold or losing it.

Backfill your holes, pack out your trash, follow current regulations, and leave every site better than you found it.

— the Prospector
